Ultimate Gear Parametric Generator (ZJUN_3D)
Spur, helical, bevel, crown, worm, rack and ring gears from one MakerWorld form
Ultimate Gear Parametric Generator (ZJUN_3D) is a free browser tool on MakerWorld for replacement gears and small gear drives. Free; MakerWorld login needed to customize and download. The creator also sells a separate MakerWorld membership for the Transmission System Series. Exports STL and 3MF. Last checked .
Opens makerworld.com
About this generator
Ultimate Gear Parametric Generator is a free MakerWorld customizer by ZJUN_3D that covers almost every common gear in a single form. You pick a type (spur or helical, herringbone, straight or spiral bevel, crown, internal ring, rack, or a worm with its worm wheel), then set the size with a module value, a tooth count and a thickness. It runs on an OpenSCAD script built on the BOSL2 library, and a second script stacks two gear layers into one part.
The rest of the form handles the details that decide whether a printed gear fits: pressure angle, helix angle, backlash and tip clearance, plus bore shapes from round and hex to D, double-D, cross and keyed shafts, with a tolerance and chamfer for the hole. You can add a hub on either face, cut lightening holes and chamfer the edges. Version 12 added bore rotation so keyed shafts line up while the teeth mesh, and version 13 added side holes for locking screws.
It is free with a MakerWorld login and has close to 49,000 customizations. Commenters report fixing a washing machine and a Halloween animatronic with it. It suits makers who know the module and tooth count of the gear they need; if you only know the outside diameter, expect some trial and error.
What you can make
- Spur and helical gears
- Herringbone gears
- Straight and spiral bevel gears
- Crown and internal ring gears
- Worms, worm wheels and racks
- Two-layer stacked gears
How to use Ultimate Gear Parametric Generator
- Open the model page, sign in to MakerWorld and click Customize
- Pick a gear type, then set module, tooth count and thickness
- Adjust backlash, bore shape, hubs and lightening holes if needed
- Generate the preview, download the file and slice it
What you'll need to print it
Filament and parts that suit what you make with Ultimate Gear Parametric Generator.
PETG
M3 screws
M3 heat-set inserts
Also handy
Digital calipers
Filament dryers and dry boxes
Some of these are affiliate links: we may earn a small commission, at no extra cost to you. More about that
Ultimate Gear Parametric Generator pros
- Most common gear types in one form, including worms, racks, crown and bevel gears
- Round, hex, D, double-D, cross and keyed bores, with hubs and set-screw holes
- Backlash, clearance and bore tolerance fields to tune the printed fit
Ultimate Gear Parametric Generator cons
- Sizing works through module and tooth count, and several commenters struggled to hit a target diameter or asked what units the fields use
- No STEP file from MakerWorld; STEP export is only on the creator's separate ZJUN3D site
- Needs a MakerWorld account, and the Standard Digital File License rules out selling the files or prints
Rate Ultimate Gear Parametric Generator
One rating per account. Signing in takes one email link, no password.
Reviews
Made with Ultimate Gear Parametric Generator
Read next
Ultimate Gear Parametric Generator alternatives
Gear, knob and part generators
Mechanical Parts
Gear Generator by Koolm
Spur, ring, bevel, crown and worm gears plus racks, all from one MakerWorld form
Mechanical Parts
alpaco.it Gear Generator
Meshing spur, helical or herringbone gears set by module and teeth, with shaft fittings
Mechanical Parts
Neo Gear
Free spur and helical gear generator with profile shift and keyed, D, hex or square bores, as STL or 3MF
Mechanical Parts

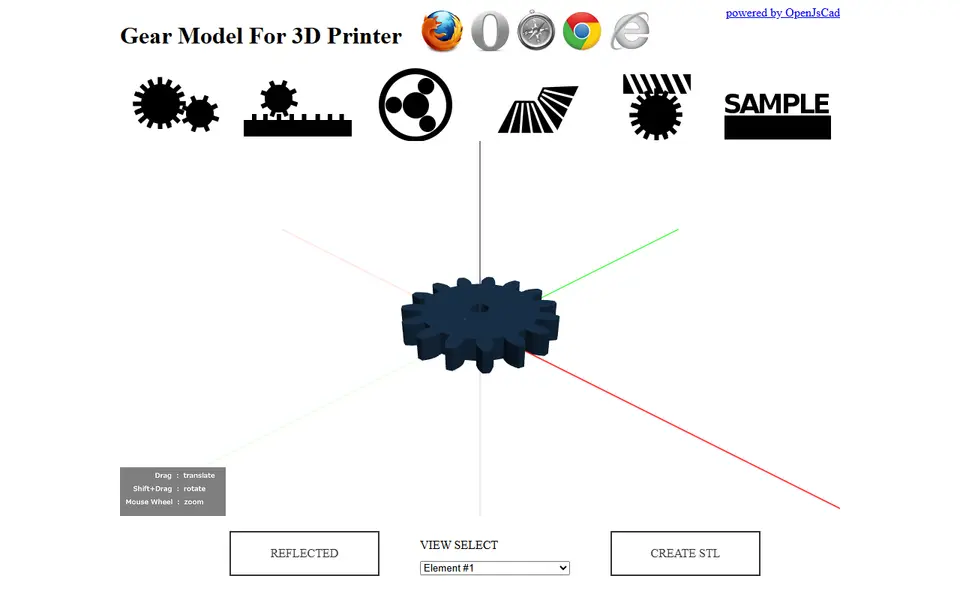

Gear Model For 3D Printer (knowhave)
